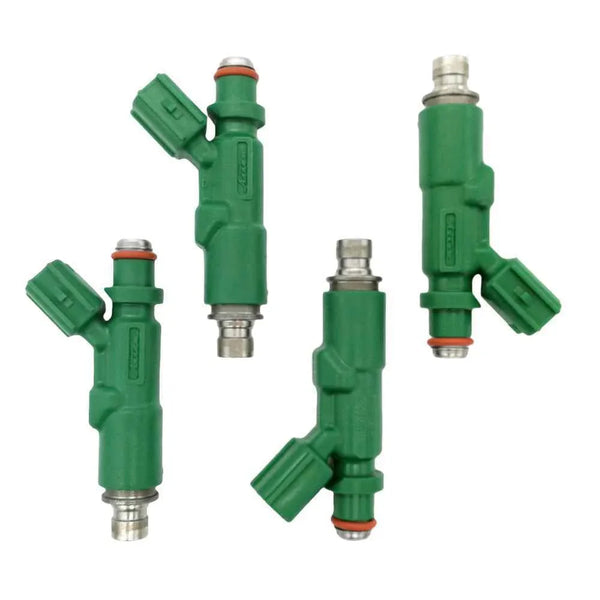

4Pcs Fuel Injector Set
for Toyota Prius Echo & Scion xA xB (2000-2009)
Replaces OE: 23250-21020
$66.95
COPY
5% OFF
OFFER5
✔ Copied
Standard
Calculating...
Free
-
Fast Free Shipping›
-
2-Year Warranty›
-
30-Day Free Returns›
-
24/7 Customer Service›
-
Guaranteed Exact Fit›
Check if this fits your vehicle
Close
! ! !
Out of stock in local warehouse
Requires shipment from overseas warehouse
Longer shipping time
Please do not place orders if this is a concern
！！！
Out of stock in local warehouse
Requires shipment from overseas warehouse
Longer shipping time
Please do not place orders if this is a concern
Automotive-Leader Fuel Injectors
Vehicle Compatible
|
Year
|
Make
|
Model
|
Engine/Displacement
|
|---|---|---|---|
|
2004-2006
|
Scion
|
xA
|
1.5L L4
|
|
2004-2006
|
Scion
|
xB
|
1.5L L4
|
|
2001-2003, 2004-2009
|
Toyota
|
Prius (Base, Touring)
|
Hybrid 1.5L L4
|
|
2000-2005
|
Toyota
|
Echo (Base)
|
1.5L L4
|
Product Specifications
Warranty & Support: 2-Year Warranty (Pre-sale Flow & Seal Test + 24/7 Technical Support)
|
Item
|
Specification
|
|---|---|
|
Core Part Number
|
23250-21020 (FJ343) (4 pcs included)
Interchange: 23209-21020, 158-0559, M711, 16-2008, 217-1955, AUSMP-10254, 800-1346N, 842-12234, 640-612, 4G1560 |
|
Position
|
Fuel Rail (Top Feed)
|
|
Key Parameters
|
- Orifice Type: 12-Hole
- Injection Type: Multi-port Fuel Injection (MFI) - Fuel Type: Gasoline - Terminal: 2-Pin, Blade Type, Male - Inlet Filter: Basket Filter Design |
|
Vehicle Fitment
|
Compatible with various Toyota and Lexus 4-cylinder engine models. Please verify specific compatibility using the interchange numbers or your original part number.
|
Fuel nozzle fault performance:
1.Fuel hole is clogging
2.Poor sealing. Poor sealing of the needle valve and the needle valve body, resulting in poor atomization or oil leakage of the injector
3.Has air in the oil circuit
4.Poor oil supply
5.Insufficient spring force of the piston spring or spring break
6.Piston wear, which affects oil supply
How to judge the injector is clogged or damaged?
1.Engine noise is getting bigger, especially in low gear and below 2500 rpm
2.The throttle response is not sensitive, the acceleration is not smooth, and the throttle will have obvious hysteresis.
3.The idling range is small, especially when starting, the jitter is obvious, and it is not easy to eliminate. The 1st and 2nd gears have a slight lack of cylinder feel.
4.Engine fault light is on
Please check the fitment notes for Oxygen sensor installation location information！！！
Bank 1 Sensor 1 means Upstream Right/Rear; Bank 2 Sensor 1 means Upstream Left/Front
Bank 1 Sensor 2 means Downstream Right/Rear; Bank 2 Sensor 2 means Downstream Left/Front
sensor 1=Upstream sensor 2=Downstream
